Video Measuring Machines

The intelligent video measuring machine is an advanced rapid inspection system with instant image grab software. It is user friendly, comes with a touch screen, touch probe and high accuracy. The machine itself is 3-axis motorized, compact, rigid and comes with a granite base. It comes with cameras from Germany, software from Metlogix, High accuracy Swiss guideways from Schneeberger.

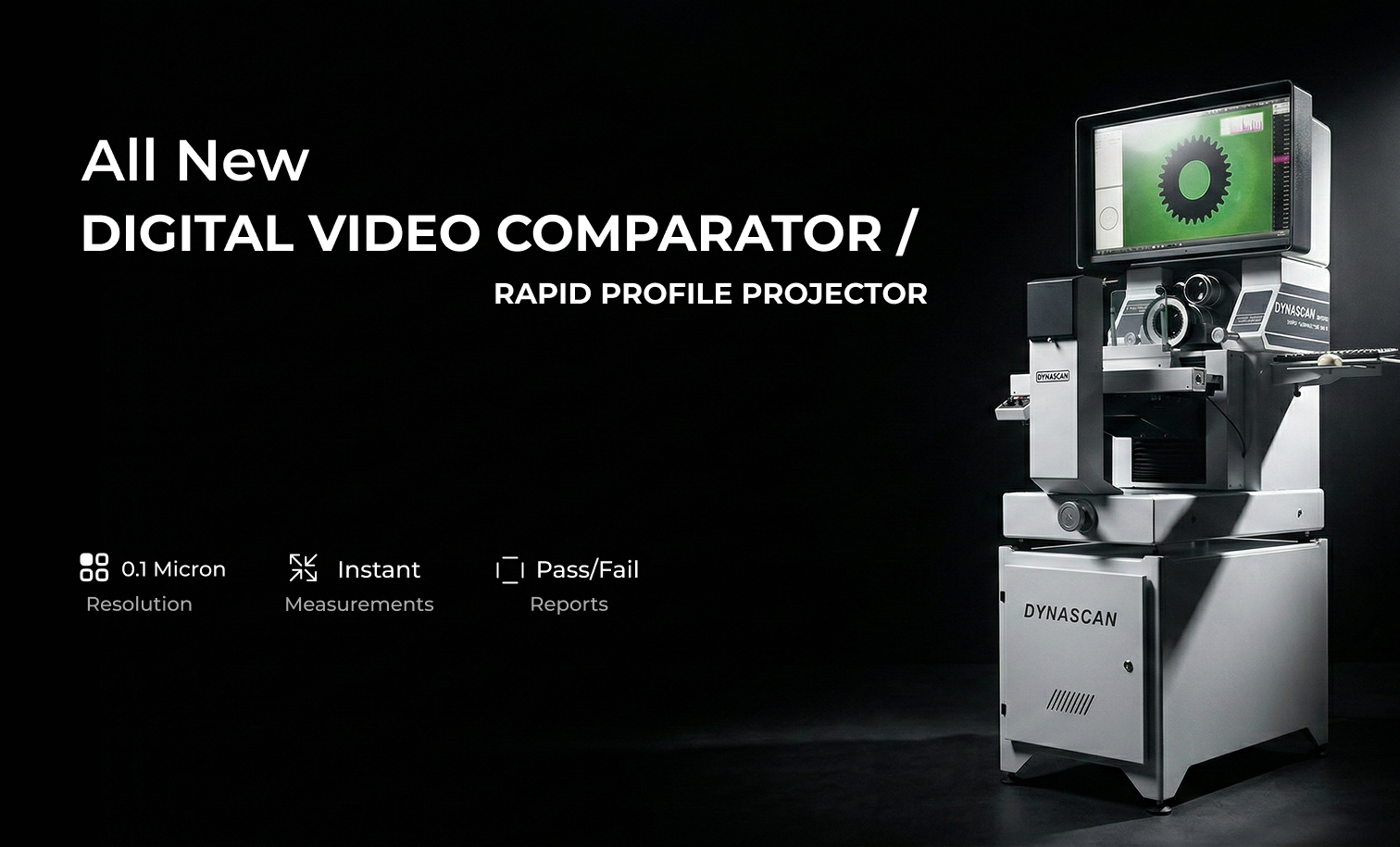

Rapid Profile Projector

The Dynascan Rapid Profile Projectors is an instant Image Measurement System of the next generation. Measurements taking 10 minutes on conventional Profile Projectors are done in seconds. Thousands of measured points (as against 10 to 20 points on Profile Projectors) are taken instantly, facilitating automatic, non-contact, rapid measurements, upto 1 micron resolution. Results are operator independent, ensuring consistency, irrespective of the user’s skill level. Drawings, Tolerancing of parts and Pass/Fail reports are generated in various formats. A stitch function is available for parts larger than the Field of View of the lens.

Smart Scan

The DYNASCAN SmartScan Turbo is a revolutionary, non-contact Rapid Inspection System. The space saving, ergonomic, cutting edge design with a precision Bi -Telecentric Lens, high resolution CMOS Camera and advanced Metrology Vision Software, captures and presents parts under inspection as drawings with dimensions, tolerances and a colour coded Pass/ Fail Reports. This results in fast, easy, accurate, automatic inspection and measurement of parts.

Profile Projectors

Dynascan Profile Projectors come in horizontal and vertical path table top models. Advanced Digital Read Out for measurements of X, Y, Angles, Lines, Distances, Circles, Skew as standard. Suitable for small, light components like plastic or watch parts, blankings and so on. Options include a Geometric Data Processor or full fledged Computer System with Edge Detector, for data capture, reverse engineering, generation of drawings by tracing, tolerancing and SPC.

Magnascope

The Dynascan Magnascope is an instant Image Capture and Visual Aid of the next generation. High Density Imaging facilitates  Identification of placement or alignment , surface finish and edge finish , and deburring of parts .Also can be used as a visual aid to check PCBs before and after assembly. Simple Instrument can be handled at the work place.

Rapid Profile Projector

The Dynascan Rapid Profile Projectors is an instant Image Measurement System of the next generation. Measurements taking 10 minutes on conventional Profile Projectors are done in seconds. Thousands of measured points (as against 10 to 20 points on Profile Projectors) are taken instantly, facilitating automatic, non-contact, rapid measurements, upto 1 micron resolution. Results are operator independent, ensuring consistency, irrespective of the user’s skill level. Drawings, Tolerancing of parts and Pass/Fail reports are generated in various formats. A stitch function is available for parts larger than the Field of View of the lens.
